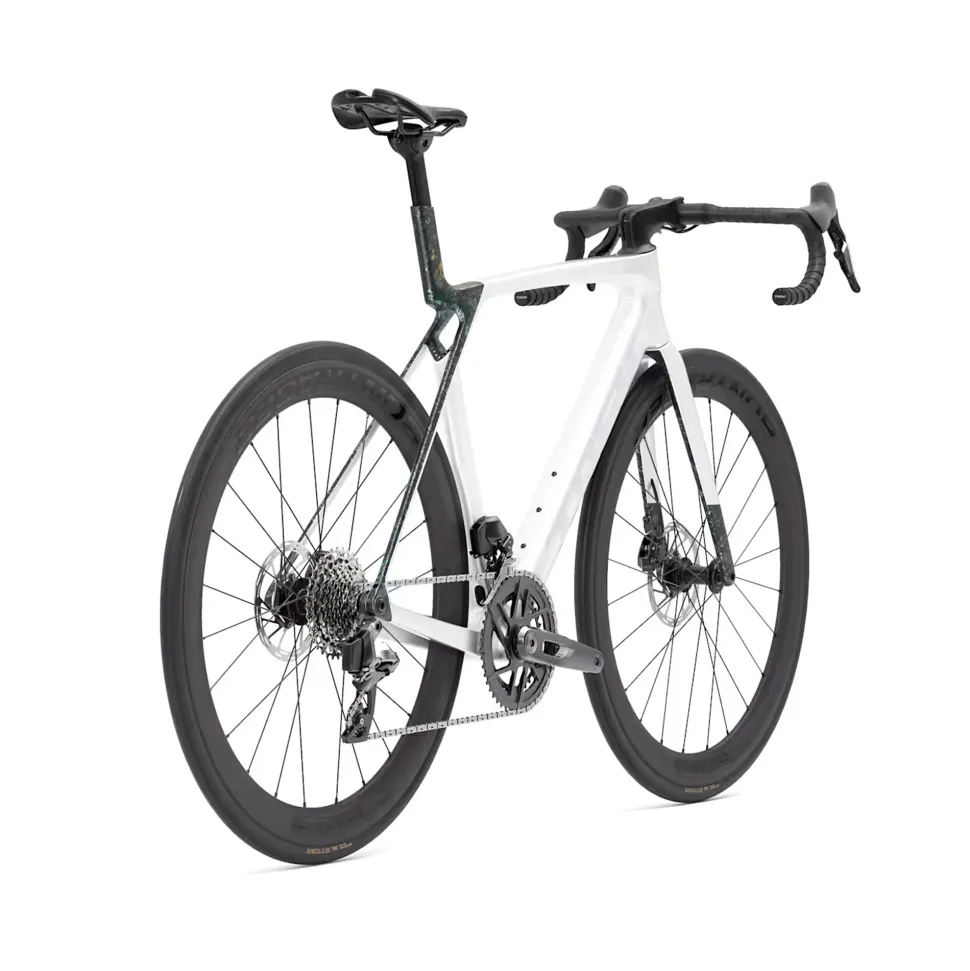

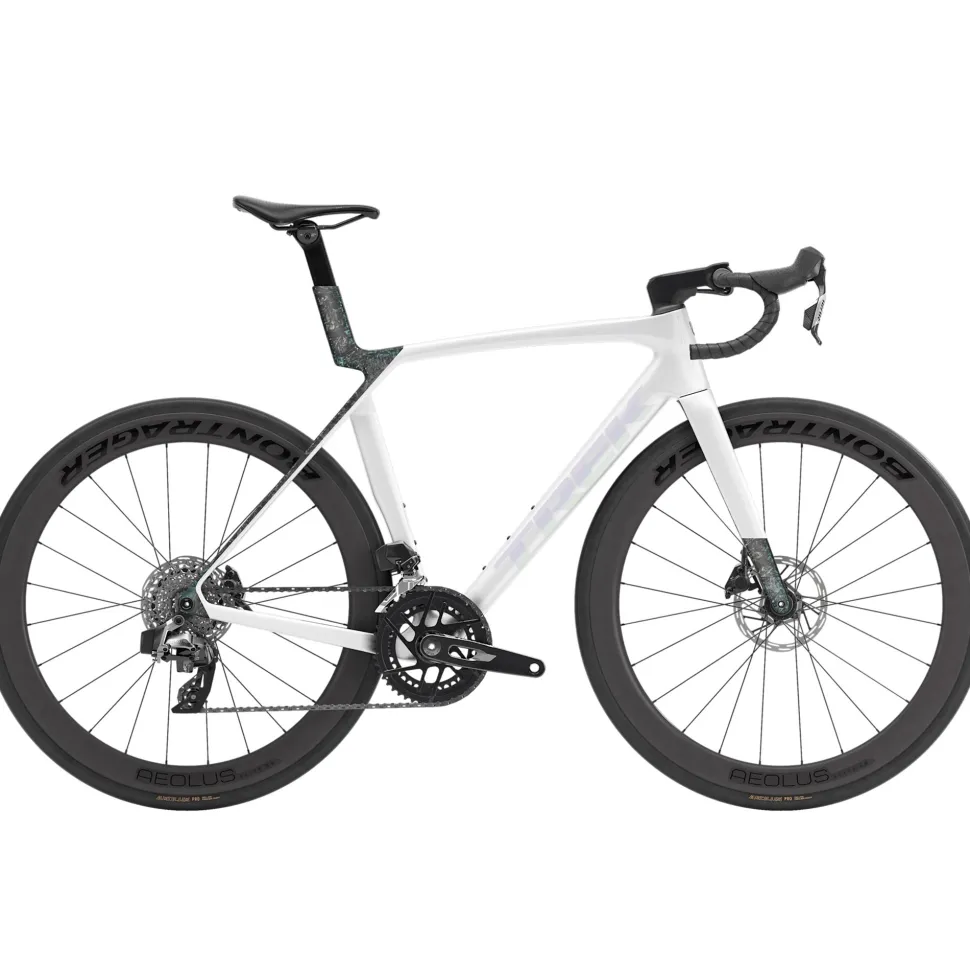

TrekMadone SL 6 Rival AXS Gen 8 Road Bike
The Trek Madone SL 6 Rival AXS Gen 8 Road Bike is a lightweight aero machine that delivers advanced race technology at a more accessible price. Built from OCLV 500 Carbon, it offers much of the aerodynamic performance of the SLR model in a more budget-friendly package.
Equipped with a SRAM Rival AXS E1 wireless electronic groupset, it delivers smooth, precise shifting without the cables. Alloy handlebars help keep costs in check, while carbon wheels add lightweight speed and efficiency, making it an ideal choice for riders seeking performance without the premium price tag.
Technical Specification
| Frame | 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142×12 mm thru axle |
| Fork | Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12×100 mm chamfered thru axle |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb) |
| Battery | SRAM eTap battery pack (with charger) |
| Front derailleur | SRAM Rival AXS, braze-on |
| Rear derailleur | SRAM Rival AXS, 36T max cog |
| Crank | SRAM Rival AXS, 48/35, DUB, 170 mm length |
| Bottom bracket | SRAM DUB, T47 threaded, internal bearing |
| Cassette | SRAM XG-1250, 10-36, 12-speed |
| Max chainring size | 1x |
| Wheel front | Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 100×12 mm thru axle |
| Wheel rear | Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 50 mm rim depth, SRAM XDR freehub, 142×12 mm thru axle |
| Skewer front | Bontrager Switch chamfered thru axle, removable lever |
| Skewer rear | Bontrager Switch chamfered thru axle, removable lever |
| Tyre | Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 170 tpi, 700×28 mm |
| Rim strip | Bontrager TLR |
| Max tyre size | 32 mm (as measured, see manual for details) |
| Saddle | Bontrager Aeolus Elite, austenite rails, 145 mm width |
| Seatpost | Madone aero carbon seat post, 0 mm offset, short length |

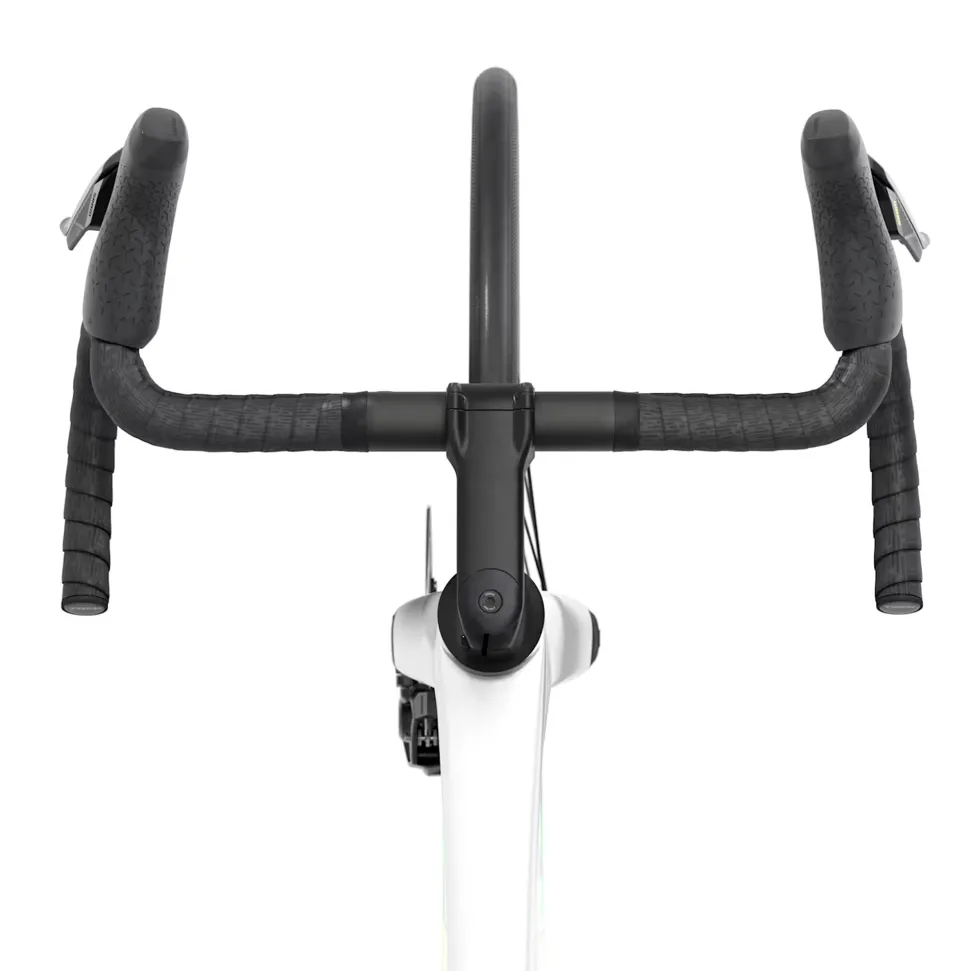

| Handlebar | |
| Size – XS | Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width |
| Size – S, M | Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width |
| Size – ML, L | Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width |
| Size – XL | Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width |
| Handlebar tape | Trek EcoTack |
| Stem | |
| Size – XS | Trek RCS Pro, -7 degree, 80 mm length |
| Size – S, M | Trek RCS Pro, -7 degree, 90 mm length |
| Size – ML, L | Trek RCS Pro, -7 degree, 100 mm length |
| Size – XL | Trek RCS Pro, -7 degree, 110 mm length |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
If you require any assistance please contact our Customer Care team.
